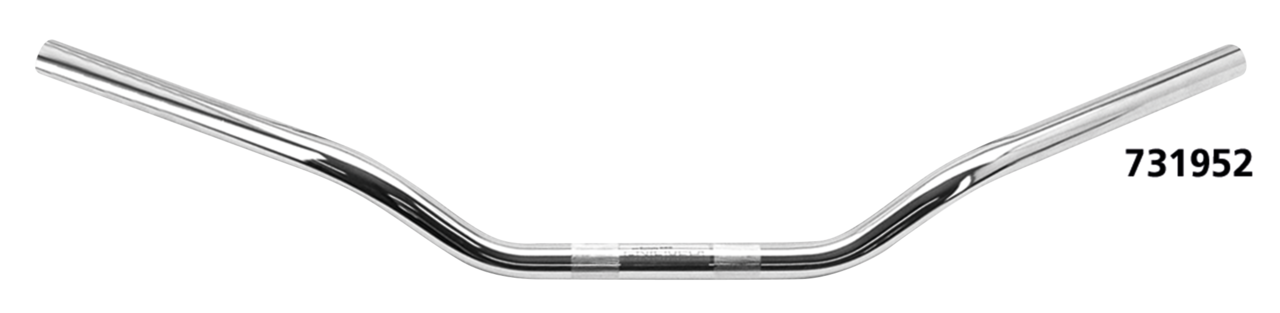

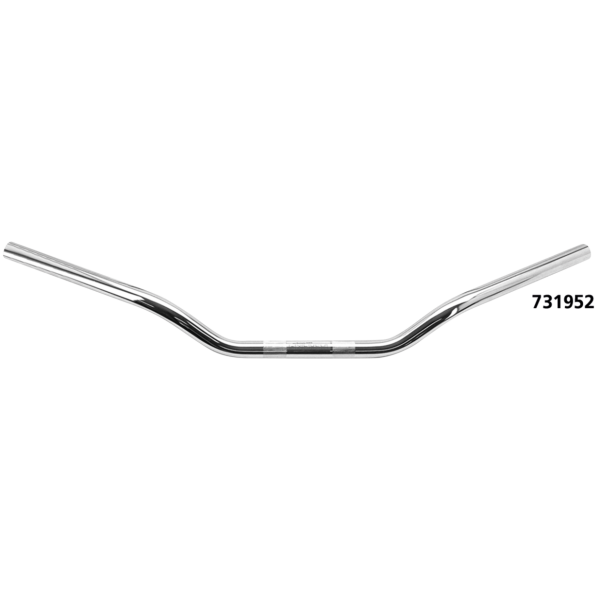

FEHLING ONE INCH DIAMETER HANDLEBARS Beach bar 1″ w/dimples 1982up

1,000 kr inkl. moms

Beach bar 1″ w/dimples 1982up från Fehling

I lager hos leverantör

Artikelnr: ZOD731952 Kategori: Etikett:

Beskrivning

High quality handlebars from the German manufacturer Fehling, designed for style and comfort. Nearly all Fehling handlebars are approved.

2″ (5cm) rise B=0cm, C=91cm, D=16cm, E=22cm, F=15cm, G=9.3cm, Beach Bar, chrome, dimple style A

A. Rise B. End Rise C. Width D. Center Width E. Base Width F. Pull Back G. Knurl (center-to-center)

Dimple styles:
A. Dimples at the underside
B. Slotted at the underside
C. Dimples & Slotted at the underside
D. Slotted at the front as on 121CI CVO Touring 2023 to present, all 117CI Touring 2024 to present and all Softail 2025 to present



A. ZPN 090012 Adapter spacer to install cable throttle on bars notched for TBW-Gen.1
Throttle-By-Wire
B. Generation 1 (TBW-Gen.1) is the electronic throttle as on CVO Softail 2011-2015, all Softail 2016-2024,  110CI FXDLS 2016-2017, all Trike 2009 to present, 96, 103, 107, 110 and 114CI Touring 2008 to present and 117CI Touring 2018-2023. These bars are notched and  approx. 17/32″ (13.5mm) shorter at the right side for the Throttle Grip Sensor that slips into the handlebar.
C. Generation 2 (TBW-Gen.2) is the electronic throttle as on RA Pan America and RH Sportster 2021 to present. These have the Throttle Grip Sensor inside the switch housing.
D. Generation 3 (TBW-Gen.3) is the electronic throttle as on 121CI CVO Touring 2023 to present, all 117CI  Touring 2024 to present and all Softail 2025 to present. These bars have dowel pin holes for the handlebar controls and the Throttle Grip Sensor inside the switch housing

Notes: •Dimpled handlebars have indents at the handlebar controls to route the switch wiring •3-Hole handlebars allow routing of the switch wiring through the handlebars. Wiring exits in the mid lower part of the handlebars •4-Hole handlebars allow routing of the switch wiring through the handlebars and ”Hidden Wire” risers such as ZPN731590



Ytterligare information

Vikt 4,5 kg
Tillverkare

Leverantörens art.nr.

731952

Produktkategori

One Inch Diameter Handlebars

Produktavdelning
