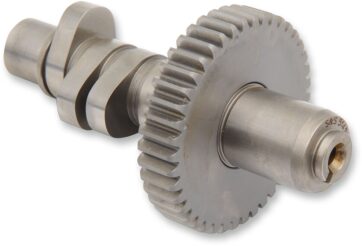

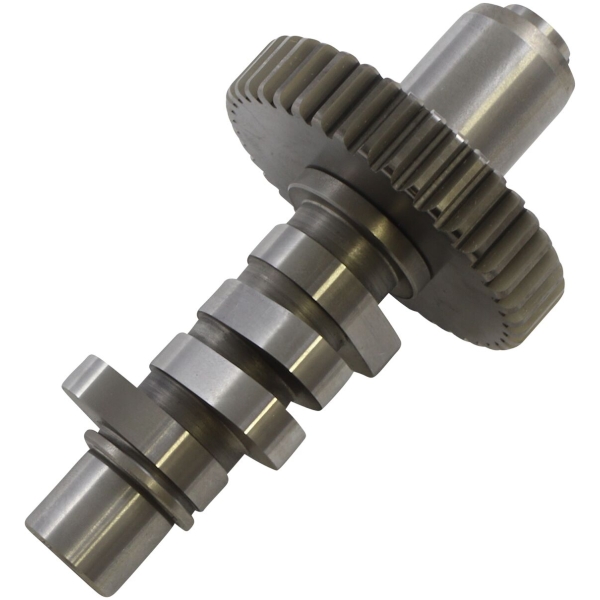

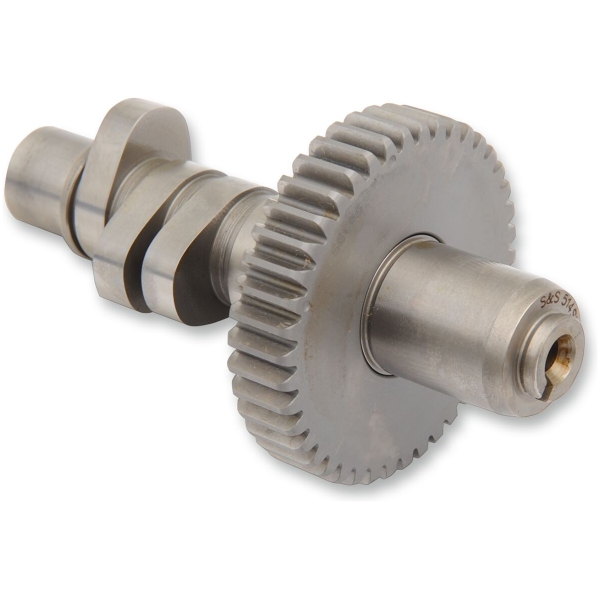

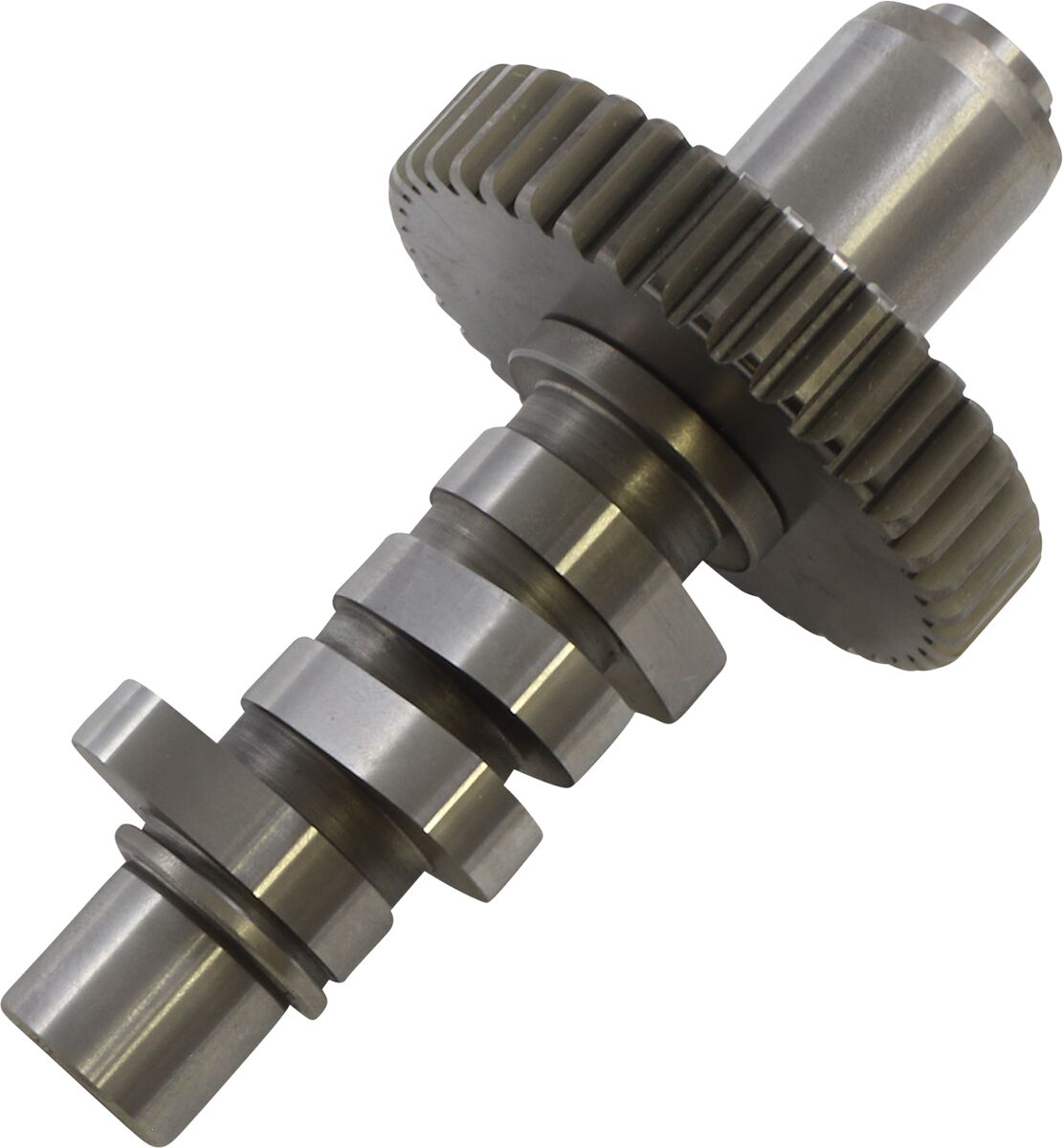

CAMSHAFT 514
CAMSHAFT 514 - Bild 2

CAMSHAFT 514

2,940 kr inkl. moms

S S 514 CAM 70-E77 B.T.

I lager hos leverantör

Artikelnr: DS199187 Kategori: Etikett:

Beskrivning

514 Cam

  • S&S cams are tested on the dyno, street and racetrack before being offered to the public
  • With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
  • Recommend high-performance hydraulic or solid lifters
  • For lower compression motors, not more than 9:1
  • Best response from 2500 to 5000 rpm
  • Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
  • Made in the U.S.A.



    • Normal leveranstid från leverantör: 4-7 dagar

    Ytterligare information

    Vikt 0,902 kg
    Tillverkare

    Exhaust Open

    43°
    Application

    Exhaust, Intake
    Exhaust Close

    23°
    Exhaust Duration

    246°
    Exhaust Lift

    0,514"
    Exhaust Lift at TDC

    0,169"
    Exhaust Lift at TDC Imperial

    0.169"
    Grind

    514 Series
    Exhaust Lift Imperial

    0.514"
    Intake Close

    43°
    Intake Duration

    246°
    Intake Lift

    0,514"
    Intake Lift at TDC

    0,169"
    Intake Lift at TDC Imperial

    0.169"
    Intake Lift Imperial

    0.514"
    Intake Open

    23°
    Harley Davidson
    FL 1200 Electra Glide 1970-1977
    FLH 1200 Electra Glide 1970-1977
    FX 1200 Super Glide 1971-1977
    FXE 1200 Super Glide 1974-1977
    FXS 1200 Low Rider 1977
